ไฮไลท์

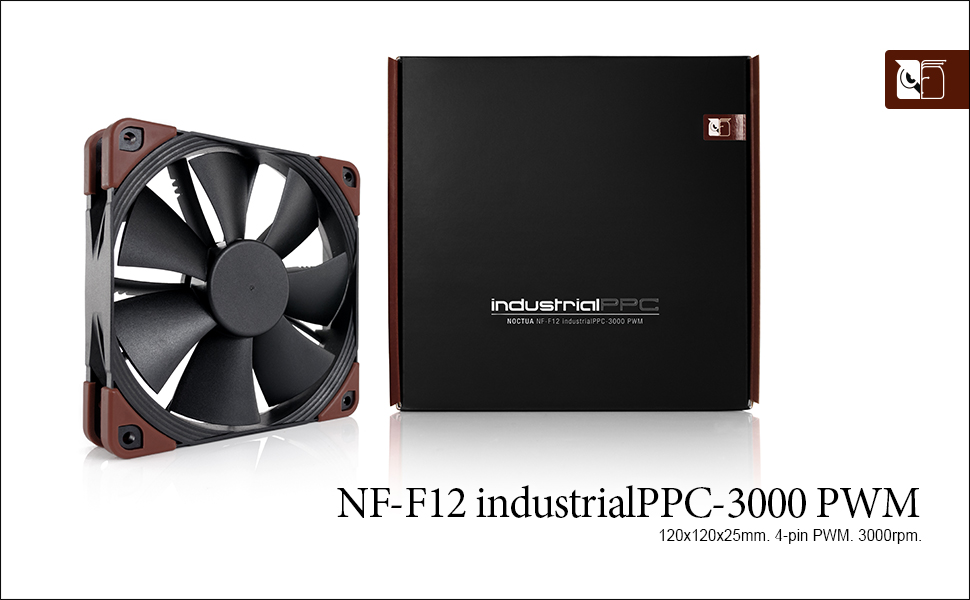

Award-winning 120x25mm fan with FocusedFlow frame for high static pressure and superior cooling efficiency
High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performance and advanced ingress protection
12V 3000rpm model (43.5dB) with 4-pin PWM connector for automatic speed control via 4-pin PWM fan headers, broad 750-3000rpm speed range
Ruggedised fibre-glass reinforced polyamide construction and IP52 certified water and dust protection
Trusted Noctua quality with premium-grade SSO2 bearing and more than 150.000 hours MTTF, backed up with 6-year manufacturer’s warranty
NF-F12 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined w/ the industrialPPC series' robust polyamide construction & adv. protection features makes the fan ideal for challenging industrial applications.
Noctuid's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

FAN Specification

Size                                                                                         120x120x25 mm
Mounting hole spacing                                                         105x105 mm
Connector & pin-configuration                                            4-pin PWM
Cable length                                                                           40cm
Bearing                                                                                   SSO2
Blade geometry                                                                      Heptaperf™
Frame technology                                                                  FocusedFlow™
Material                                                                                    Fibre-glass reinforced polyamide
Ingress protection                                                                  IP52
Motor type                                                                               Three-phase
Rotational speed (+/- 10%)                                                     3000 RPM
Min. rotational speed (PWM, +/-20%)                                    750 RPM
Airflow                                                                                      186,7 m³/h
Acoustical noise                                                                      43,5 dB(A)
Static pressure                                                                         7,63 mm H₂O
Max. input power                                                                      3,6 W
Max. input current                                                                    0,3 A
Operating voltage                                                                     12 V
MTTF                                                                                          > 150.000 h

Scope of delivery
  • Fan
  • 4 Fan Screws
Warranty                                                                                    6 years
